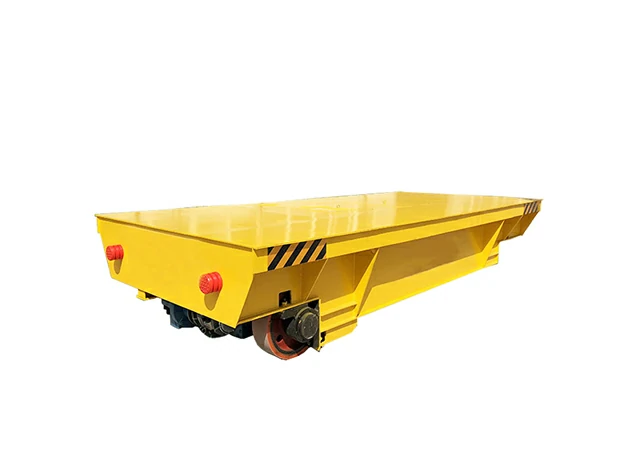

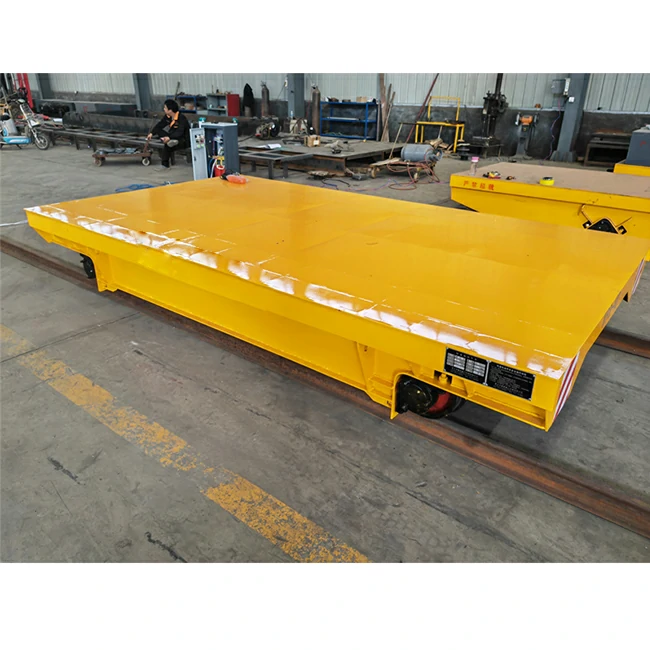

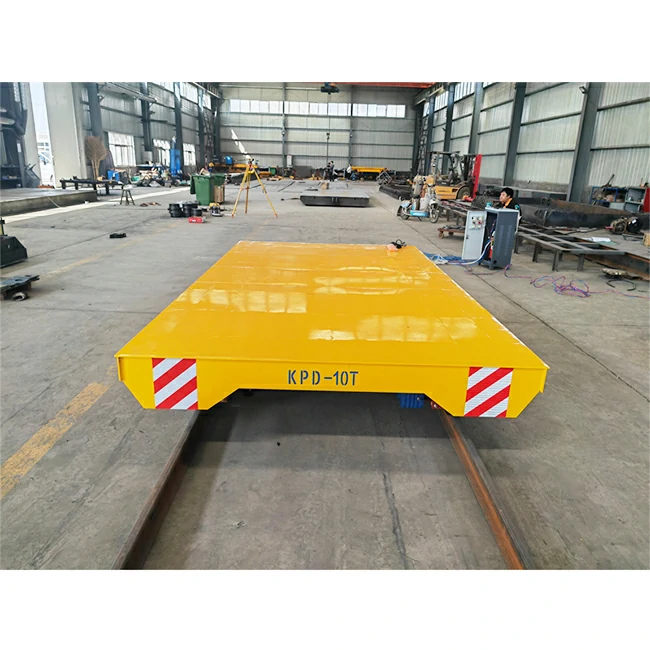

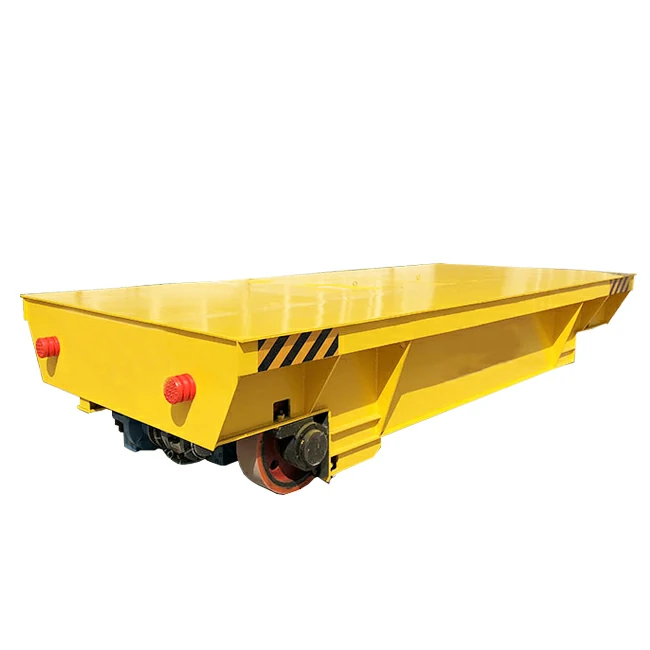

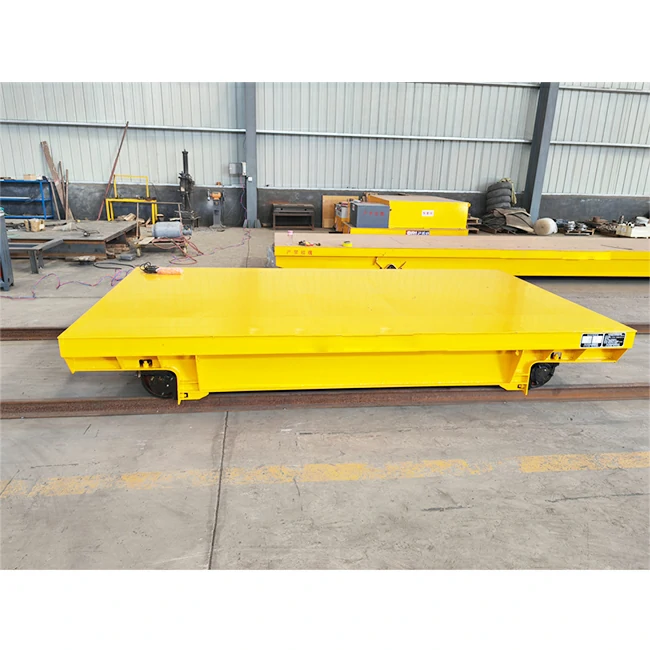

Rail Transfer Cart
Capacity:5-300t
Gage of rail:762-1435mm
L*W:3000*1500-12800*2800MM
Height:520-1350mm
Motor power:2.2-15kw
Travelling speed:15-30m/min
Product description
The trackless transfer cart offers unparalleled flexibility and maneuverability in material transport, surpassing all other types of transfer carts. Powered by an onboard battery, it operates freely on flat, hard surfaces within the factory—eliminating the need for ground-installed steel rails. Ideal for inter-workshop logistics, this vehicle provides greater convenience than rail-bound alternatives and significantly enhances operational efficiency.

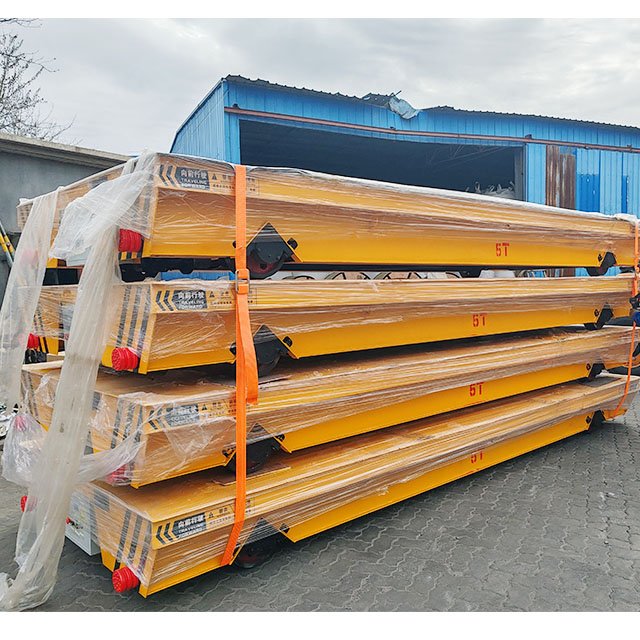

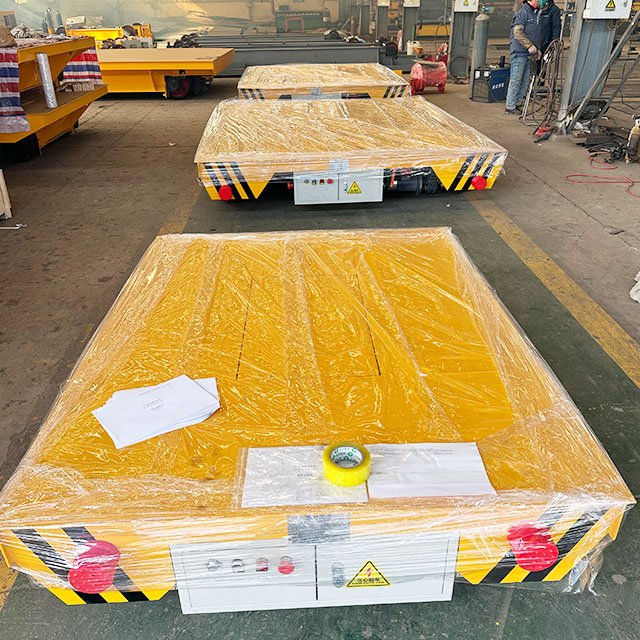

Explosion-proof electric transfer carts delivery to US
Features and Advantages:
It features high explosion-proof and high-temperature resistant performance. The electric transfer cart imposes no strict requirements on track construction, enabling safe, flexible, and user-friendly operation. Additionally, its traveling speed can be adjusted according to practical needs.

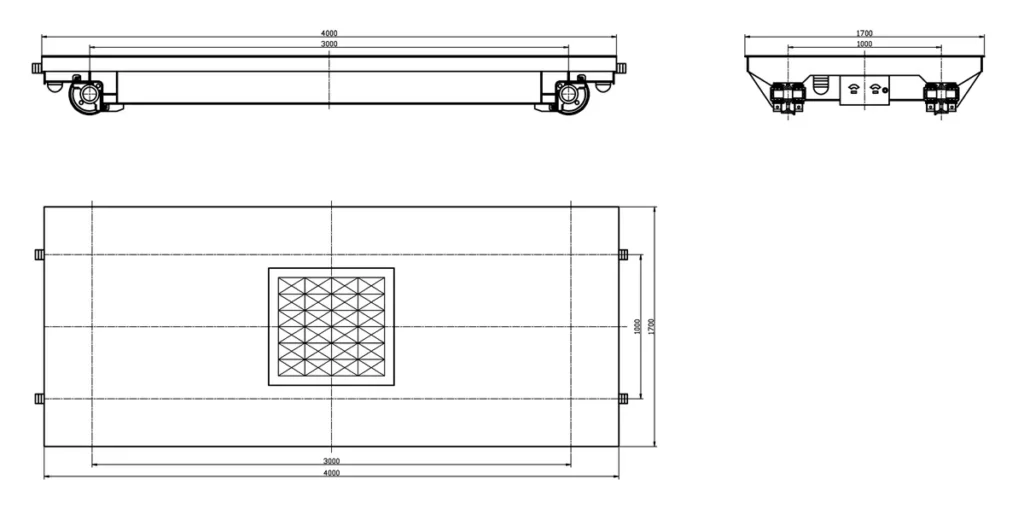

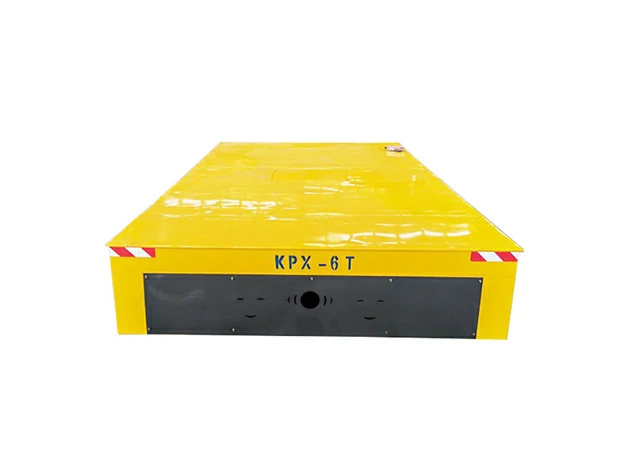

| Model | KPX-2t | KPX-20t | KPX-50t | KPX-100t | KPX-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| TableSize(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(mm) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
