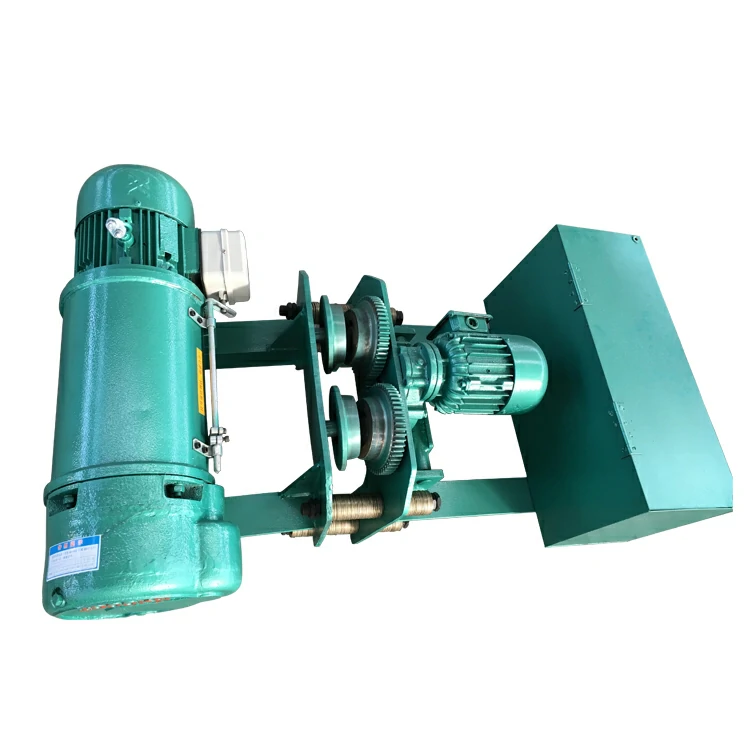

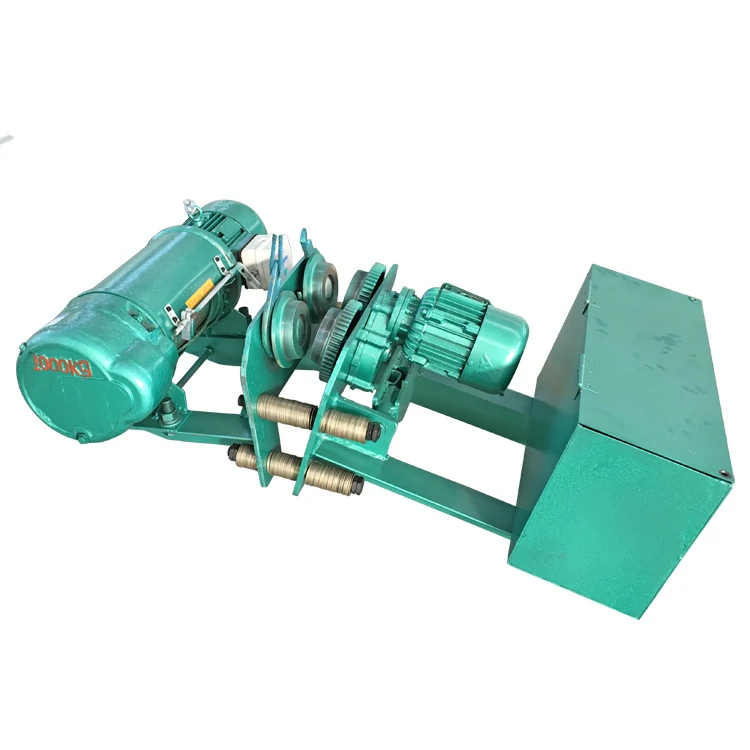

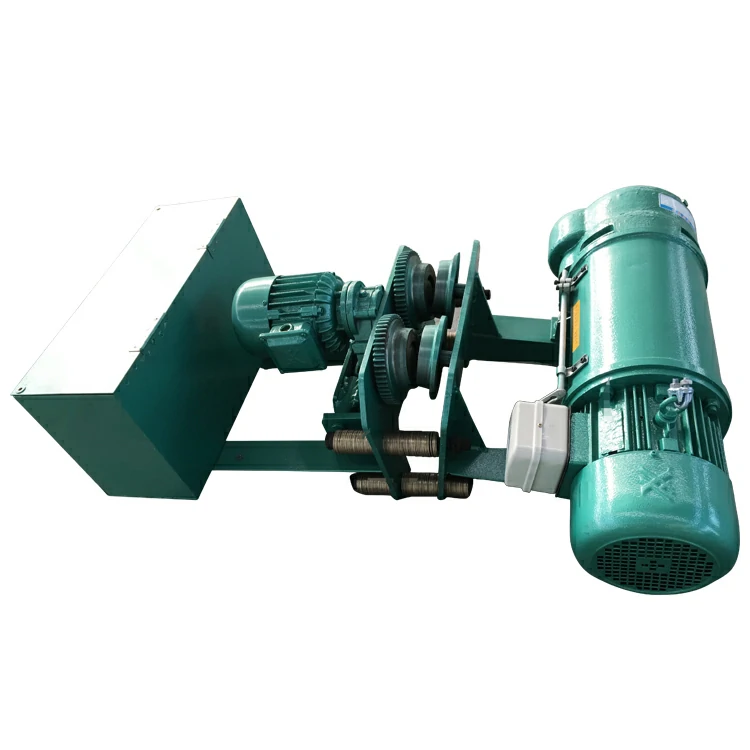

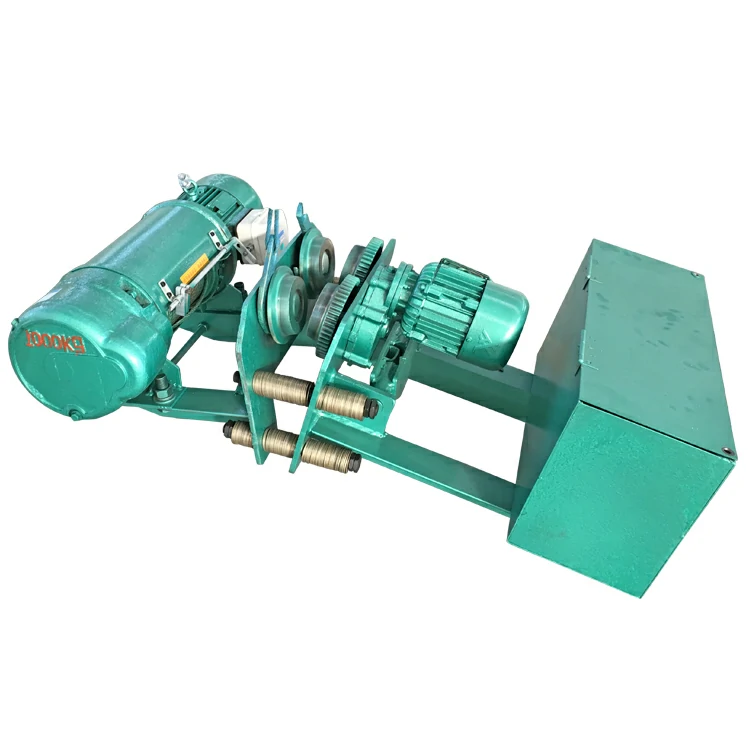

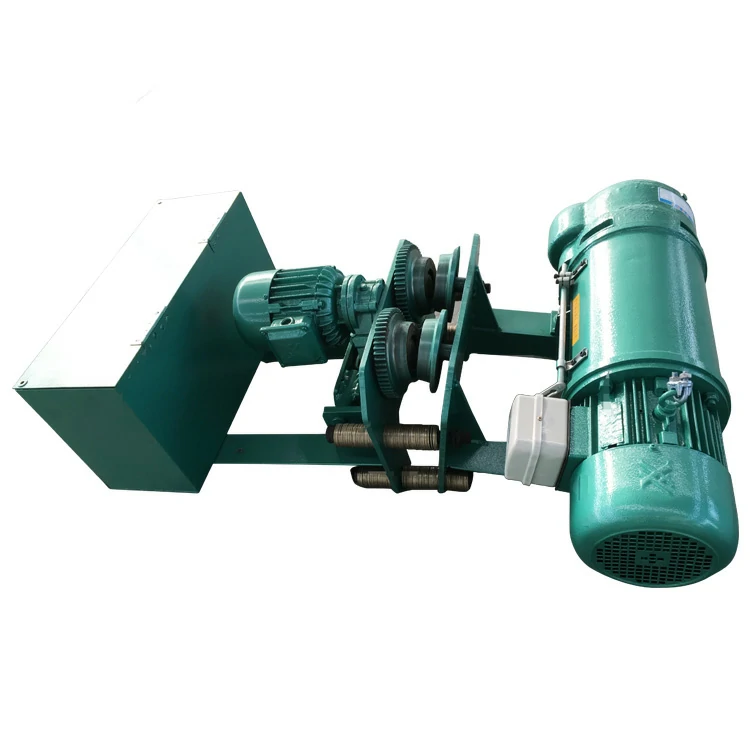

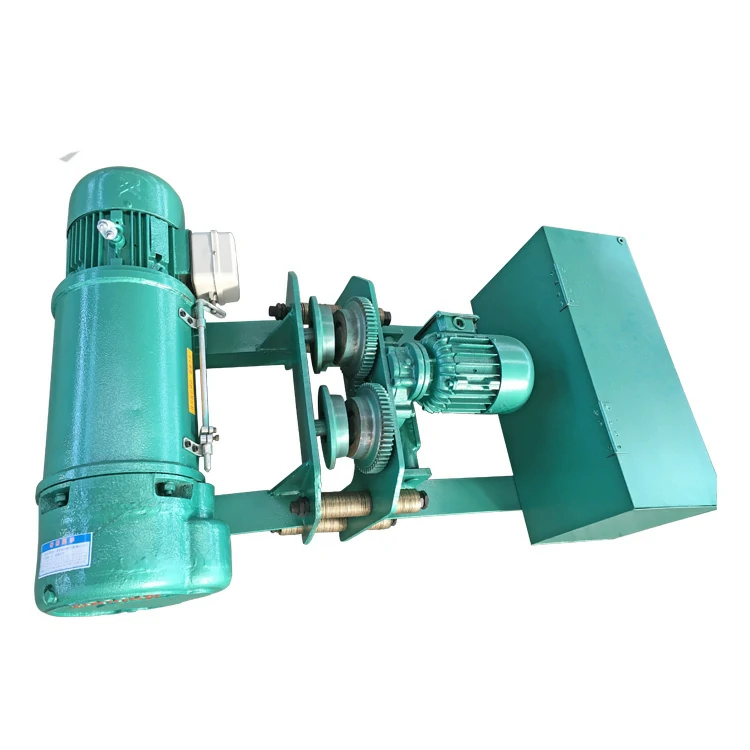

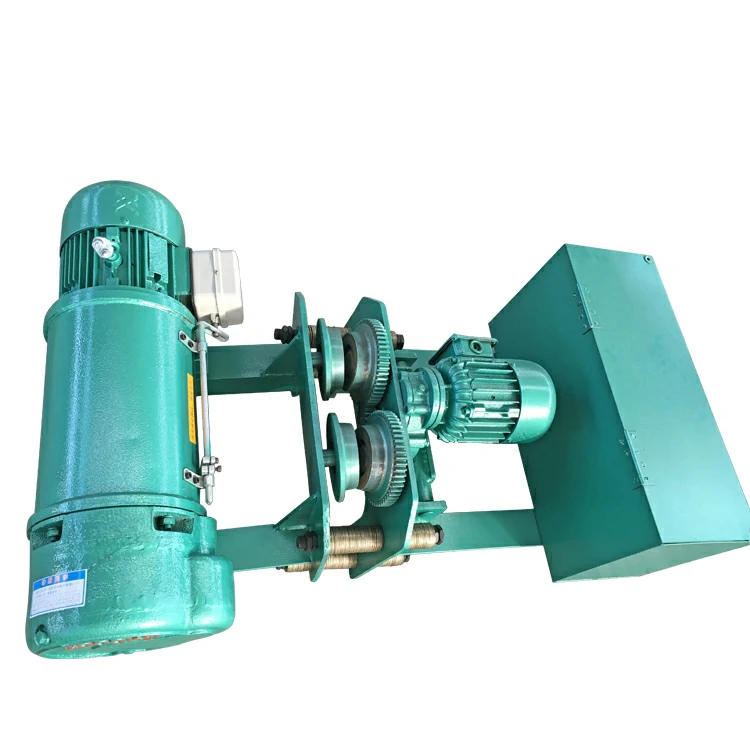

Low Headroom Wire Rope Electric Hoist
Rated lifting capacity: 0.5～16t
Lifting height: 6～12m (support customization)
Working level: M3
Lifting speed: 3.5 (3.5/0.35) m/min, 7 (7/0.7) m/min, 8 (8/0.8) m/min; walking speed 20m/min (Note: brackets for the hoist have a double lifting speed).
A Low Headroom Wire Rope Electric Hoist is a compact, high-performance lifting solution designed for spaces with restricted vertical clearance, such as low-ceiling workshops, production lines, and tight industrial facilities. By optimizing the hook-to-ceiling distance, this hoist maximizes usable workspace while maintaining full lifting capacity (typically 1 to 50 tons) and operational efficiency. Its streamlined design integrates seamlessly with single-girder cranes or monorail systems, making it ideal for material handling in constrained environments.
Why Choose a Low Headroom Wire Rope Electric Hoist?
● Space-Saving Design
Minimized hook approach (up to 30% shorter than standard hoists) allows operation in low-clearance areas without sacrificing capacity.
Ideal for facilities with ceiling obstructions.
● High Efficiency & Precision
Fast lifting speeds (up to 10 m/min) with smooth variable frequency drive (VFD) control for accurate load positioning.
Reduced sway during travel enhances safety in congested spaces.
● Durability & Adaptability
Reinforced wire rope drum and heat-resistant motor ensure longevity in demanding conditions.

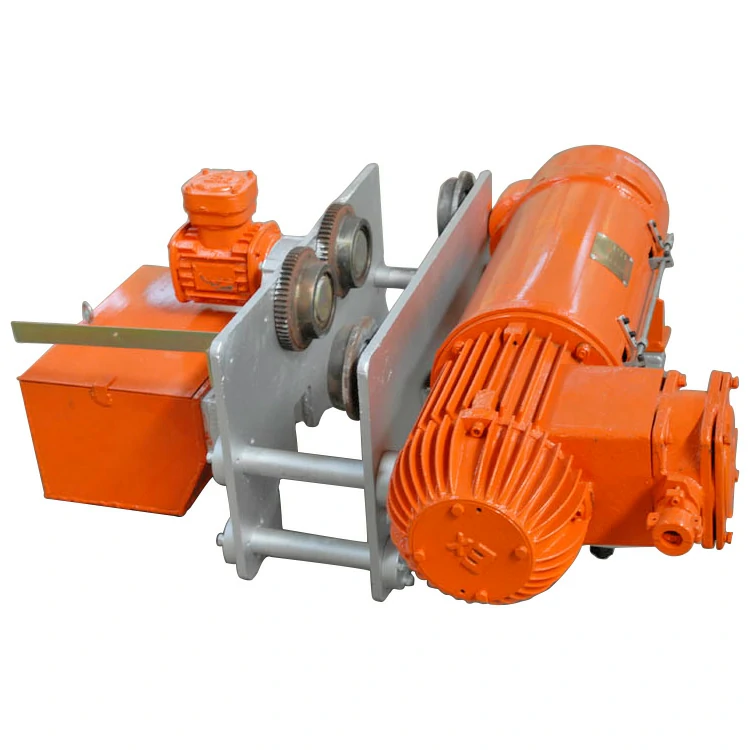

Compatible with explosion-proof, high-temperature, or corrosion-resistant configurations for specialized environments.
● Safety & Compliance
Double braking system (mechanical + regenerative) prevents load drops.
Overload protection and limit switches standard for OSHA/CE compliance.
● Cost-Effective Installation
Eliminates structural modifications (e.g., raising ceilings) to accommodate lifting needs.
Lower energy consumption vs. chain hoists in equivalent duty cycles.
