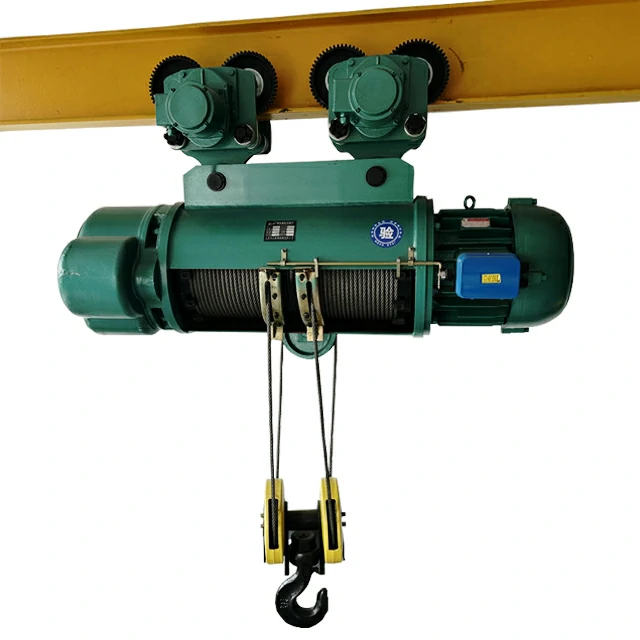

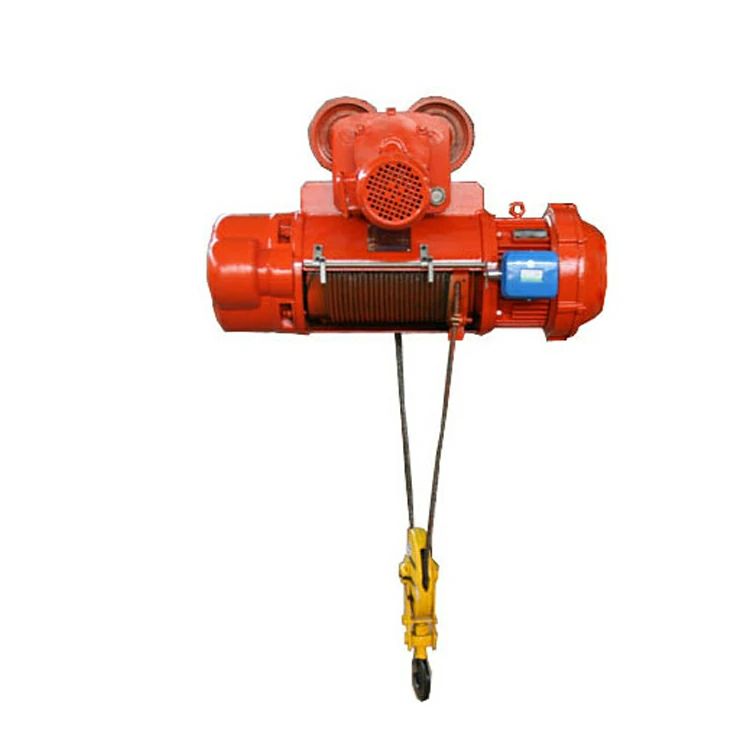

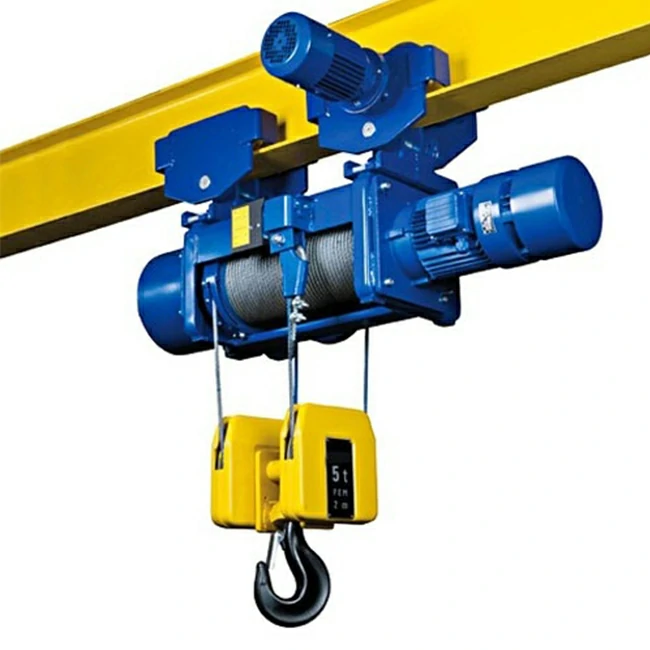

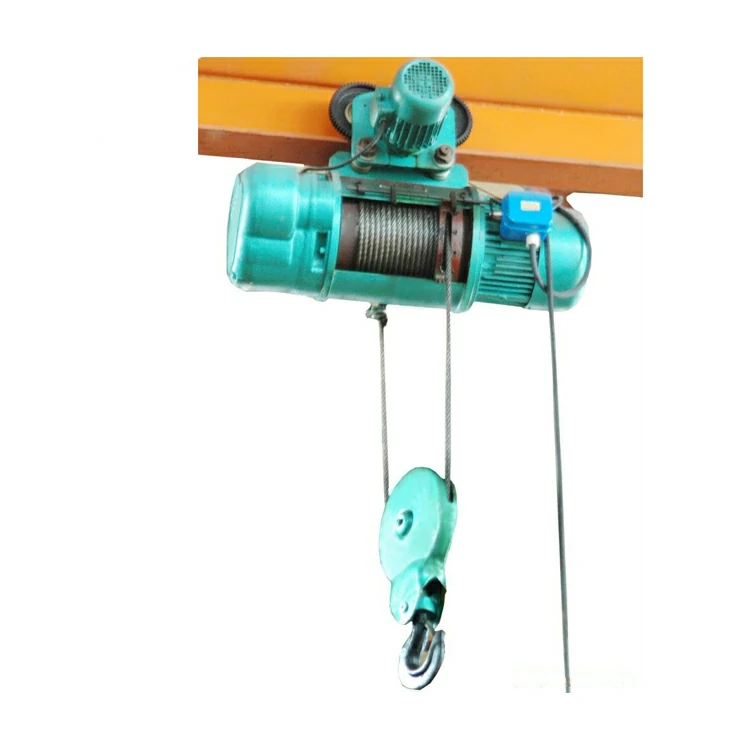

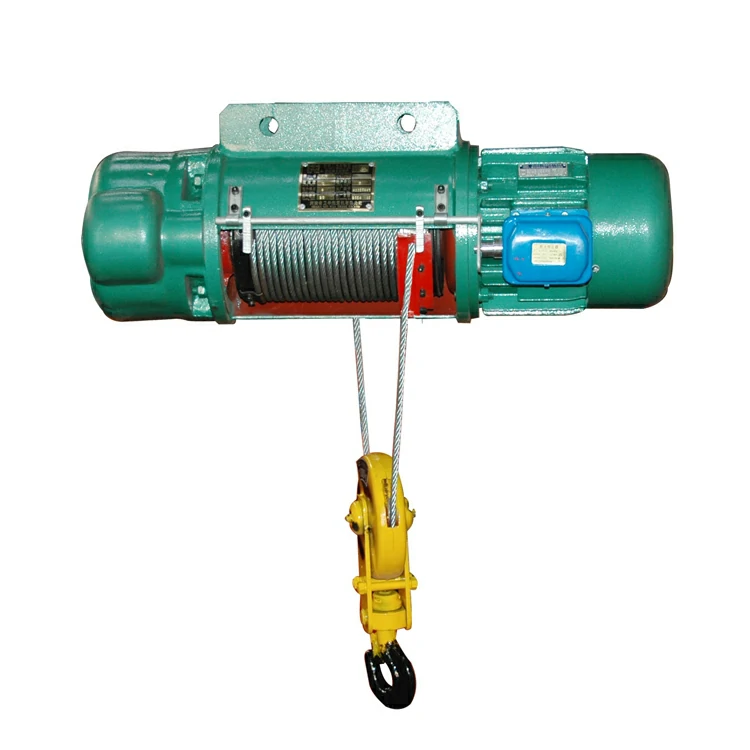

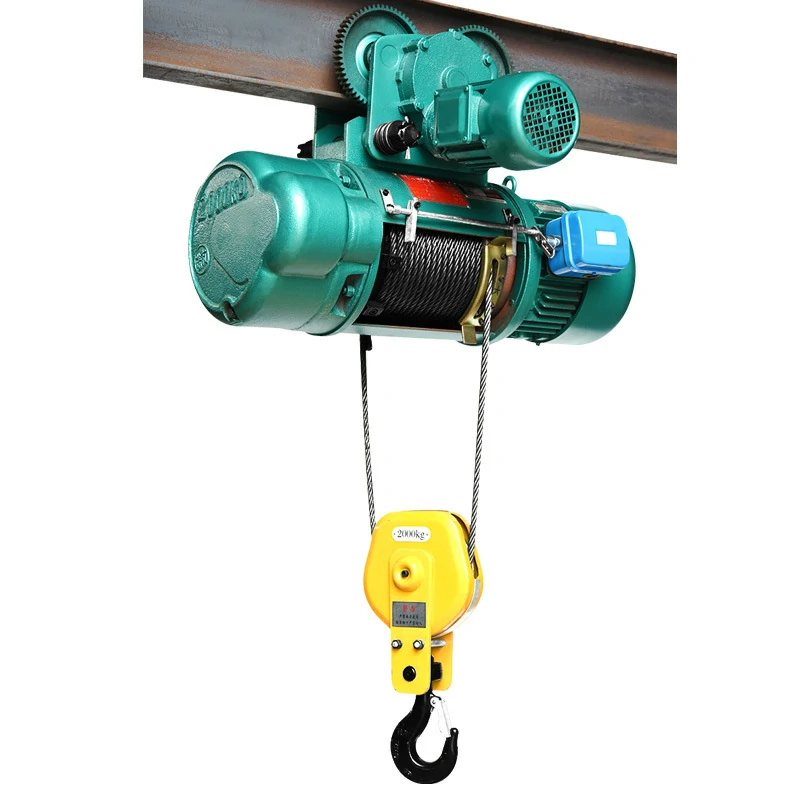

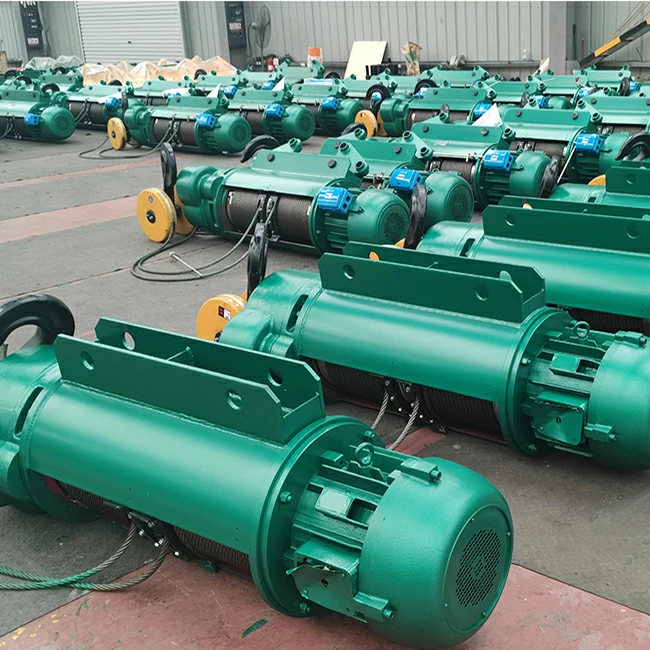

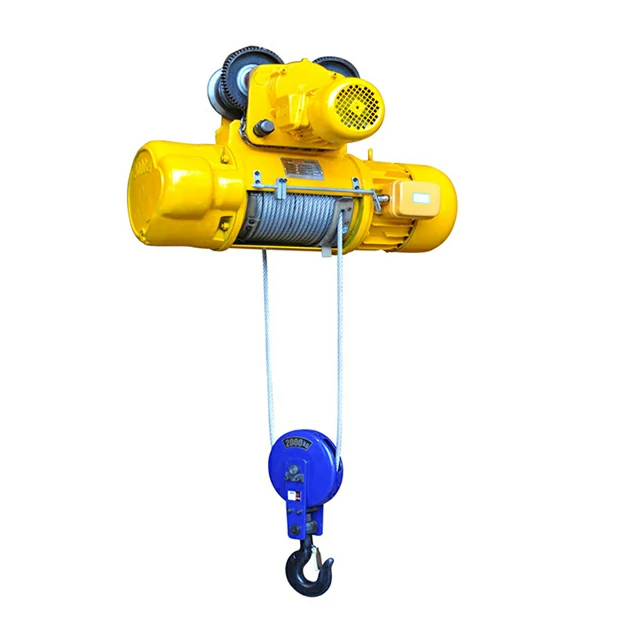

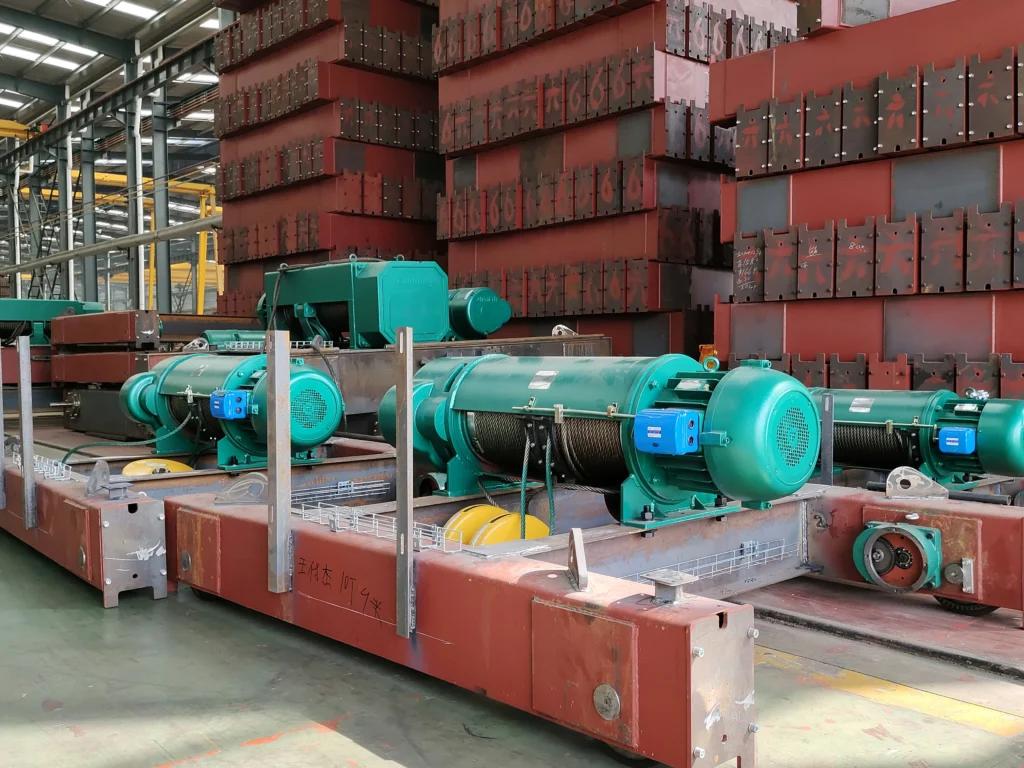

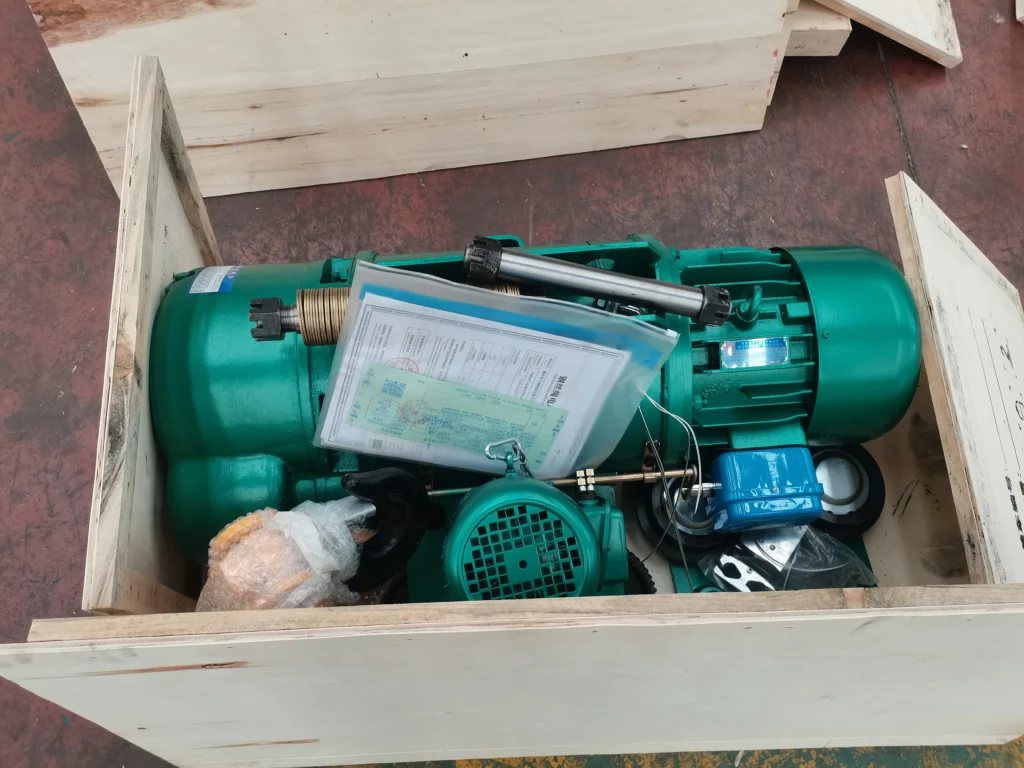

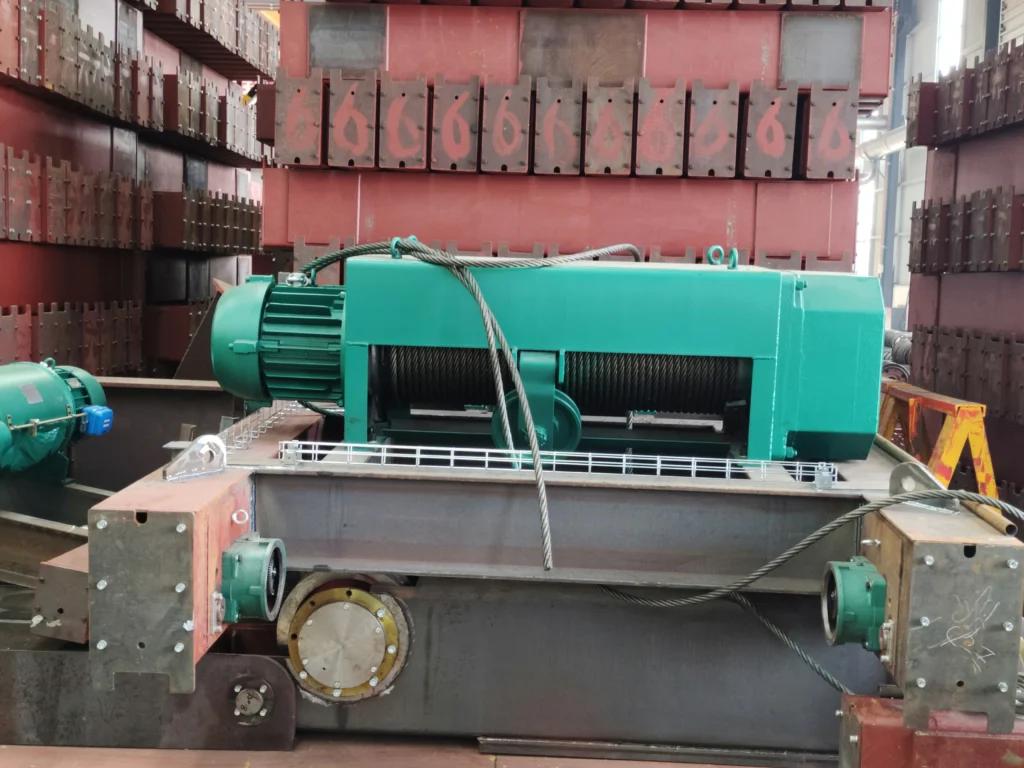

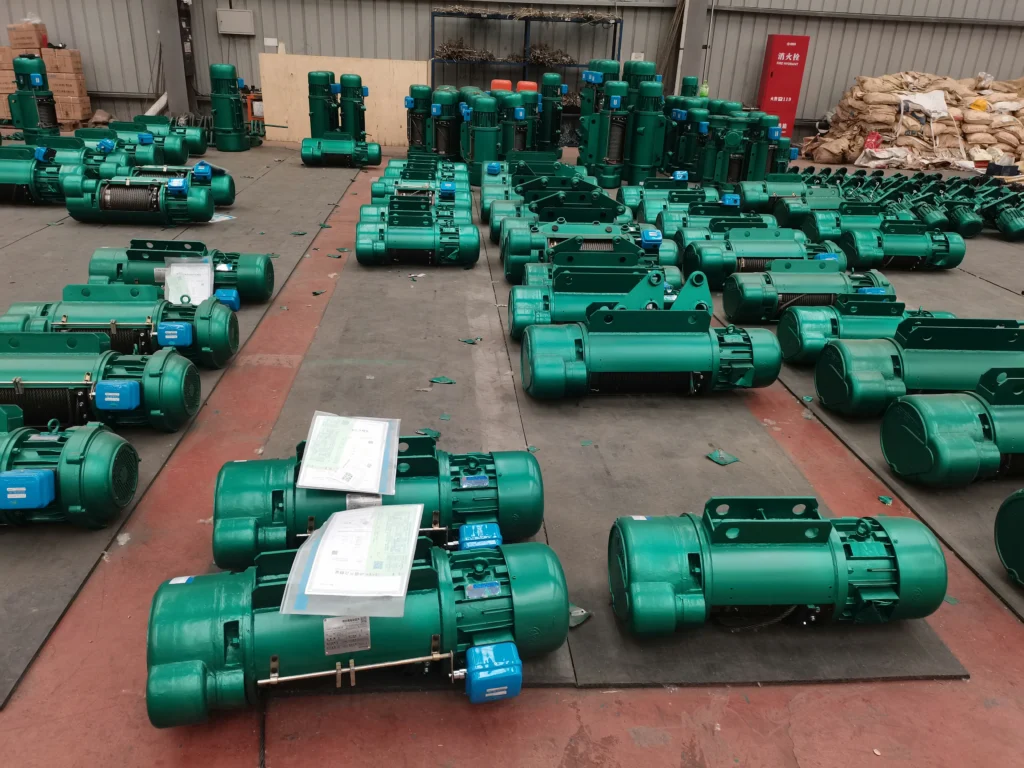

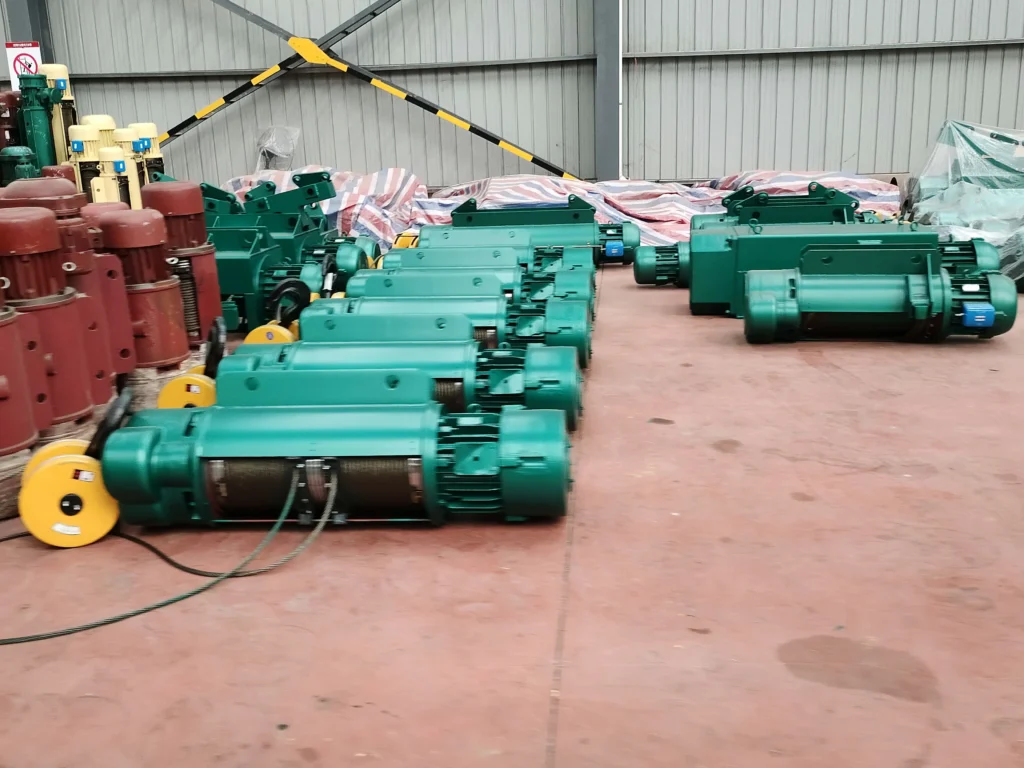

Electric Wire Rope Hoists
● SWL up to 20 t.
● Spans up to 28.5 m.
●Temperature: -25-40°C
● Working Grade:A3-A5
Load Capacity Range: 0.25-100 metric tons standard (custom designs up to 500t)
Lifting Height: Up to 120m with single-layer spooling
Lifting Speed: 0.5-20 m/min (variable frequency drive controlled)
Duty Classification: FEM 1Am to 4m (ISO M1-M8 equivalent)
Discription
Modular Drum Assembly: Precision-machined drum with optimized groove profile for smooth cable spooling
Triple-Redundant Braking: Primary mechanical brake + secondary electromagnetic brake + emergency mechanical stop
Thermal Management: IP55-rated motor with integrated cooling fins and thermal protection
Cable Guidance System: Automatic layer winding with anti-overlap technology
Why Choose an Electric Wire Rope Hoists?
● Precision Control:
Micro-speed options down to 0.1 m/min for sensitive positioning
±1% speed regulation accuracy under variable loads
● Structural Efficiency:
Compact headroom design (hook approach as low as 600mm)
High-strength alloy steel construction with FEM 9.755 compliance
● Maintenance Optimization:
Sealed-for-life gearbox with synthetic lubricant
● Automatic lubrication systems (optional)
Quick-disconnect power and control interfaces
