Semi Gantry Crane
●Capacity: 2t-40t
● Span length: 15-30m
● Lifting height: 6m, 9m, 12m,etc.
● Work duty: A3-A6
● Raged voltage: 220V~690V, 50-60Hz, 3ph AC
● Work environment temperature: -25℃～+40℃, relative humidity ≤85%
● Crane control mode: Pendant control / Wireless remote control / Cabin control
Discription

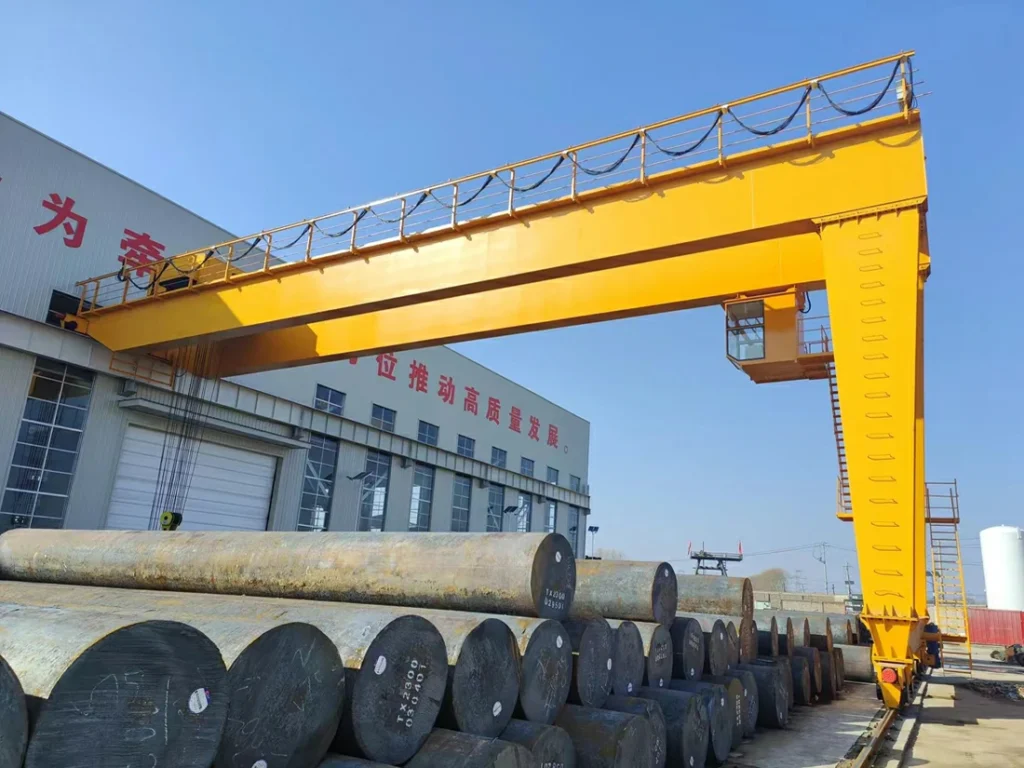

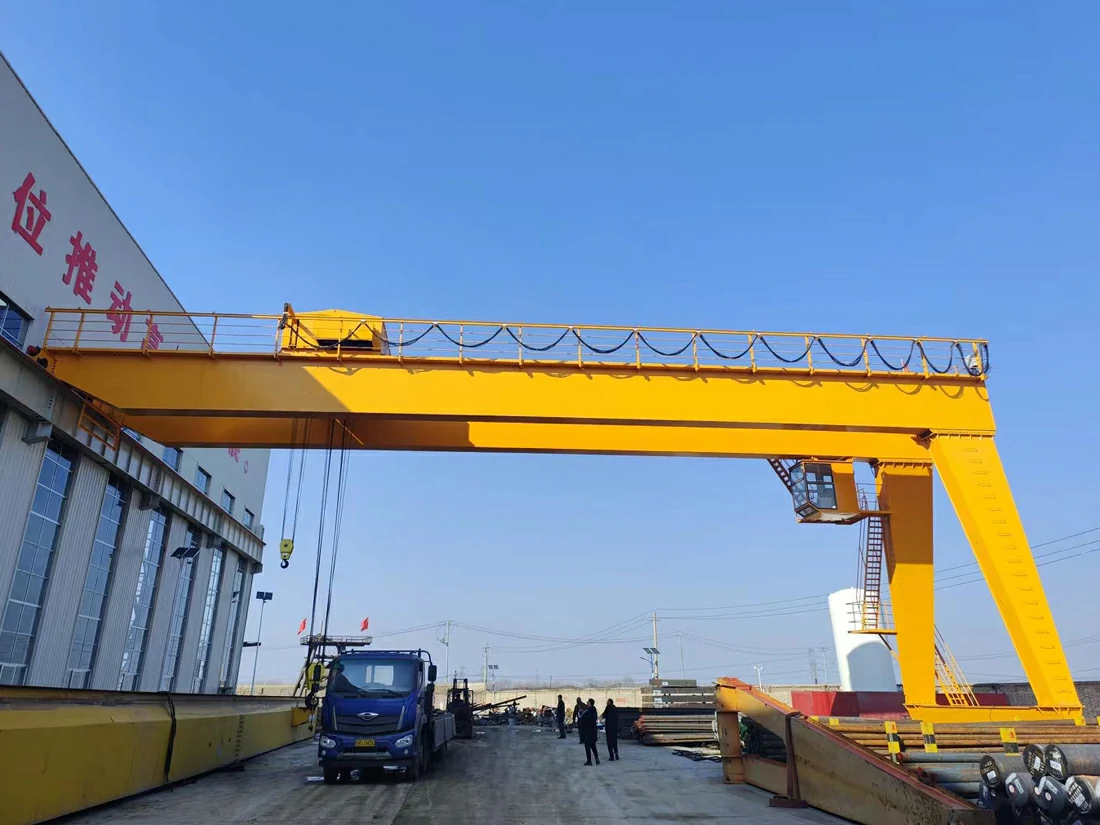

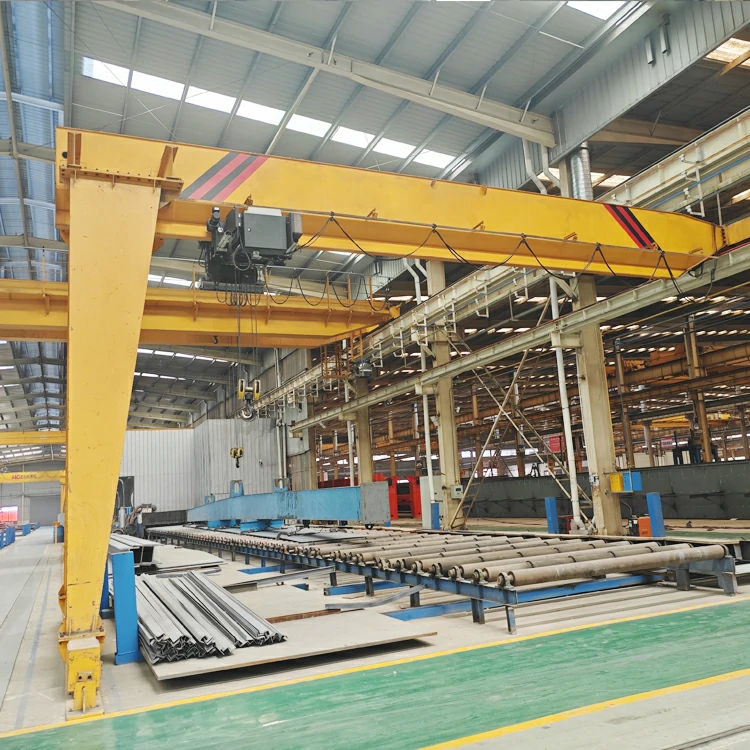

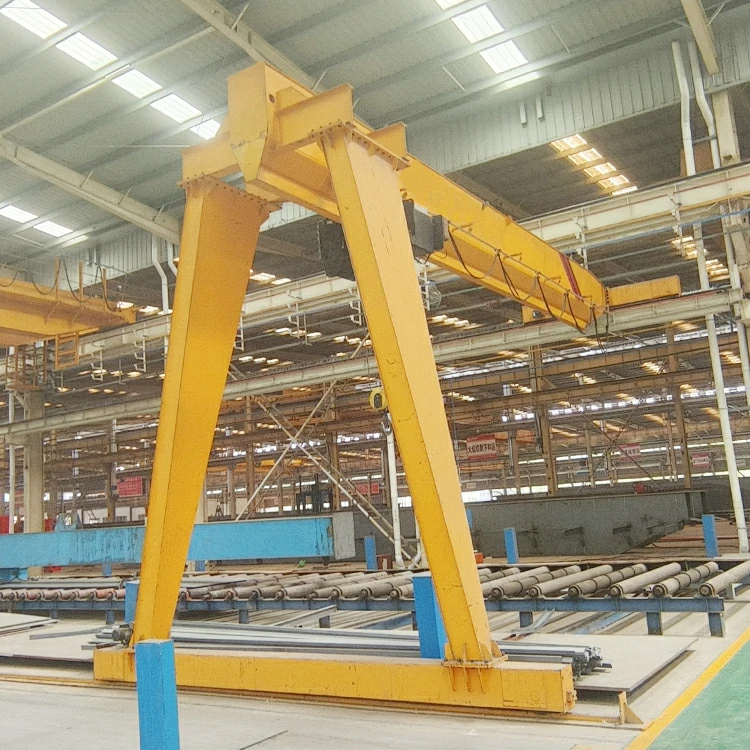

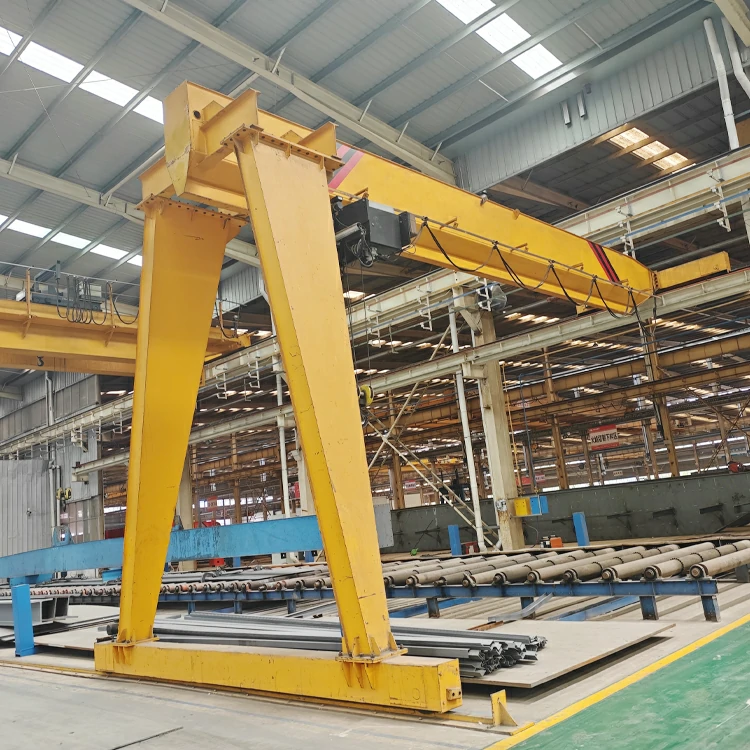

A Semi Gantry Crane (also called Semi-Portal Crane or Half Gantry Crane) is a versatile lifting solution designed for applications where full gantry systems are impractical due to space constraints or structural limitations. It features a single supporting leg on one side and a runway beam on the other, allowing it to operate along a rail or elevated track while maximizing ground space utilization. This crane is commonly equipped with an electric hoist or trolley for efficient material handling in industrial settings.
Why Choose an Semi Gantry Crane?
● Space Efficiency
Ideal for facilities with limited headroom or where one side of the workspace has obstructions (e.g., walls, machinery). The single-leg design reduces footprint while maintaining lifting capacity
● Cost-Effective
Simpler structure than full gantry cranes, lowering installation and maintenance costs
● Adaptability
Suitable for both indoor and outdoor use, including workshops, warehouses, and shipyards. Some models feature adjustable spans for flexible operation
● Ease of Installation
Modular design allows quicker assembly compared to double-leg gantry systems, especially in retrofit projects.
● Customizable Load Handling
Available with hook, grab, or magnet attachments for diverse applications like steel handling, container loading, and bulk material transport
